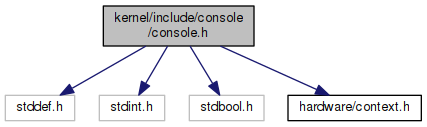

Include dependency graph for console.h:

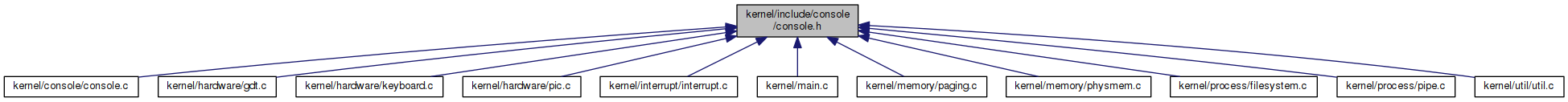

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Macros | |
| #define | MAKE_COLOR(foreground, background) (((foreground) & 15) | (background) << 4) |
| #define | MAKE_RAW_CHAR(color, chr) ((((uint32_t)(chr)) & 0xFF) | (((uint32_t)(color)) & 0xFF) << 8) |
| #define | RAW_CHAR_COLOR(raw) (((raw) >> 8) & 0xFF) |
| #define | RAW_CHAR_CHR(raw) ((raw) & 0xFF) |
| #define | BG_COLOR(color) ((color >> 4) & 15) |
| #define | FG_COLOR(color) (color & 15) |
| #define | CONSOLE_WIDTH(size) (size & 0xFFFF) |
| #define | CONSOLE_HEIGHT(size) ((size >> 16) & 0xFFFF) |
| #define | CONSOLE_POSX(pos) (pos & 0xFFFF) |
| #define | CONSOLE_POSY(pos) ((pos >> 16) & 0xFFFF) |
Enumerations | |
| enum | VGA_COLOR { COLOR_BLACK = 0, COLOR_BLUE = 1, COLOR_GREEN = 2, COLOR_CYAN = 3, COLOR_RED = 4, COLOR_MAGENTA = 5, COLOR_BROWN = 6, COLOR_LIGHT_GREY = 7, COLOR_DARK_GREY = 8, COLOR_LIGHT_BLUE = 9, COLOR_LIGHT_GREEN = 10, COLOR_LIGHT_CYAN = 11, COLOR_LIGHT_RED = 12, COLOR_LIGHT_MAGENTA = 13, COLOR_LIGHT_BROWN = 14, COLOR_WHITE = 15 } |
| enum | CONSOLE_FLAGS { CONFLAGS_ECHO = 1, CONFLAGS_HWCURSOR = 2, CONFLAGS_HWCURSOR_AUTO = 4, CONFLAGS_RAW_MODE = 8 } |
Functions | |
| void | consoleInit () |
| Initializes the console. More... | |
| void | consoleClear () |
| Clear the screen contents. More... | |
| void | consoleSetColor (uint8_t color) |
| Set the text and background color of the console. More... | |
| uint8_t | consoleGetColor () |
| Get current color. More... | |
| uint8_t | consoleGetColorForeground () |
| Get current foreground color. More... | |
| uint8_t | consoleGetColorBackground () |
| Get current background color. More... | |
| void | consolePutChar (char chr) |
| Write a character on the console. More... | |
| void | consoleEchoChar (char chr) |
| Echo keyboard input on the console. More... | |
| void | consolePutCharRaw (uint16_t chr) |
| Write a raw character and color on the console. More... | |
| void | consoleWriteString (const char *str) |
| Write a C string to the console. More... | |
| void | consoleWriteStringLen (const char *str, size_t len) |
| Write a string with a fixed size to the console. More... | |
| void | consoleWriteRawLen (const uint16_t *data, size_t count) |
| Write raw data with a fixed size to the console. More... | |
| void | consoleWriteStringMax (const char *str, size_t len) |
| Write a nullterminated string or a maximum of len characters. More... | |
| void | consoleWriteHex32 (uint32_t value) |
| Write a 32 bit integer as hex value on the console. More... | |
| void | consoleWriteInt32 (uint32_t value) |
| Write a 32 bit integer as decimal value on the console. More... | |
| void | consoleWriteHex16 (uint16_t value) |
| Write a 16 bit integer as hex value on the console. More... | |
| bool | consoleSetCursorPos (uint8_t x, uint8_t y) |
| Set the position of the text cursor. More... | |
| uint32_t | consoleGetCursorPos () |
| Get packed position of the text cursor. More... | |
| uint32_t | consoleGetCursorPosX () |
| Get X position of the text cursor. More... | |
| uint32_t | consoleGetCursorPosY () |
| Get Y position of the text cursor. More... | |
| void | consoleScrollUp () |
| Scroll the console up one line. More... | |
| uint32_t | consoleGetSize () |
| Returns the packed size of the console. More... | |
| uint8_t | consoleGetHeight () |
| Returns the height (text rows) of the console. More... | |
| uint8_t | consoleGetWidth () |
| Returns the width (text cols) of the console. More... | |
| void | consoleShowHardwareCursor (bool changed) |
| Show / hide blinking hardware cursor. More... | |
| void | consoleSetHardwareCursor (uint8_t x, uint8_t y) |
| Set the position of the hardware cursor. More... | |
| uint32_t | consoleGetHardwareCursor () |
| Get packed position of the hardware cursor. More... | |
| void | consoleSetFont () |
| Load a custom font supporting latin1 characters. More... | |
| void | consoleSetFlags (uint32_t newFlags) |
| Set console flags. More... | |
| uint32_t | consoleGetFlags () |
| Get console flags. More... | |
| void | consoleSystemFailure (const char **lines, uint32_t numArgs, uint32_t *args, struct taskContext *context) |
| Print a system failure message and halts the system. More... | |
